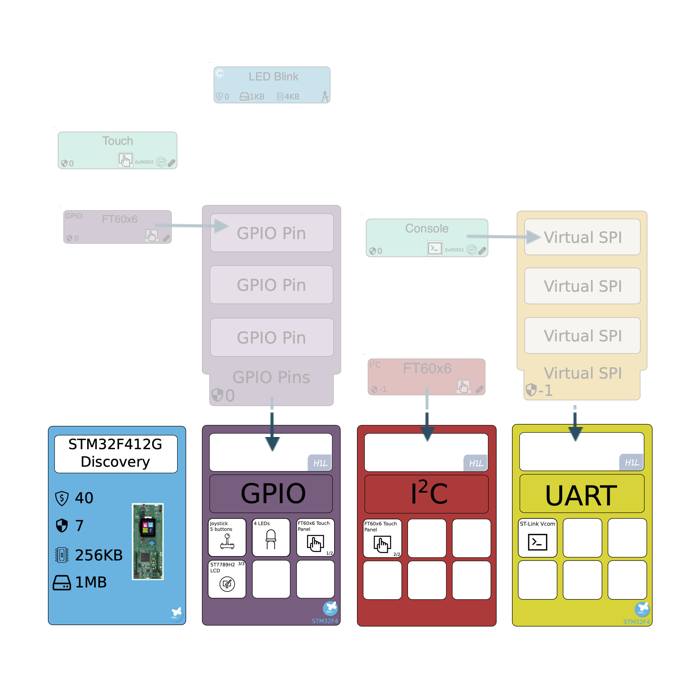

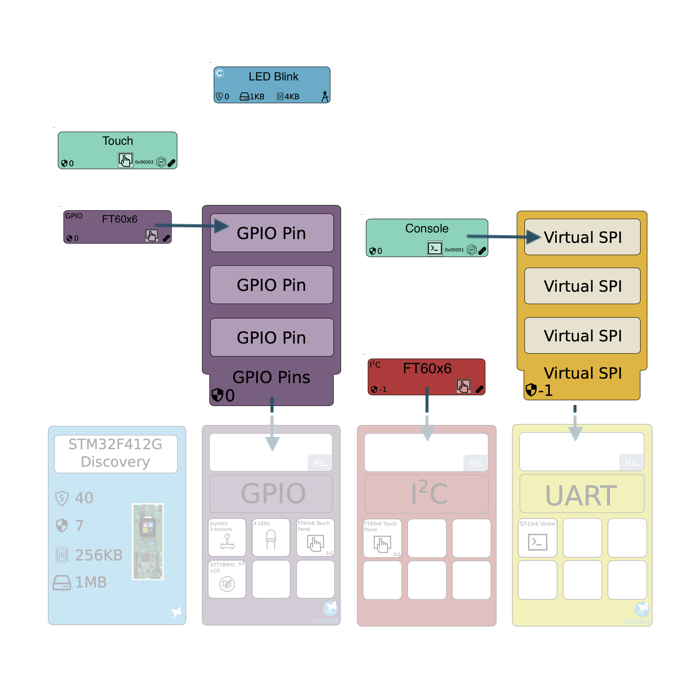

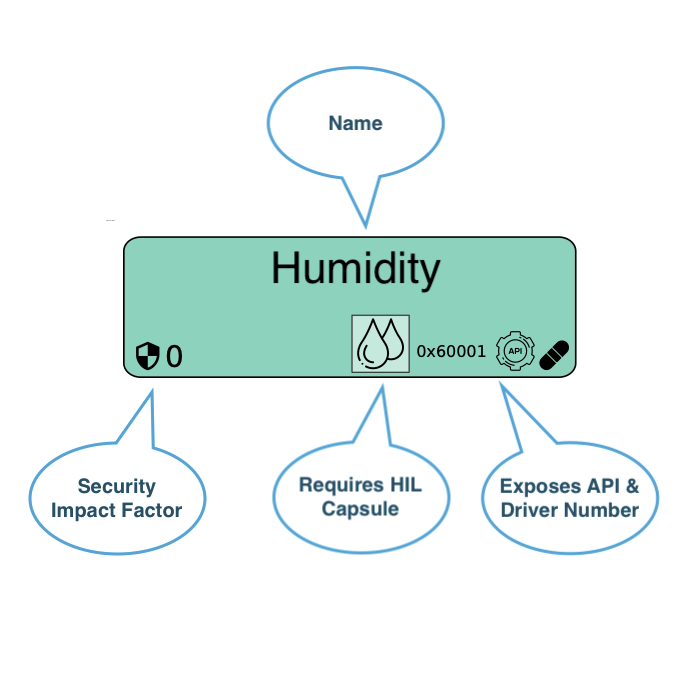

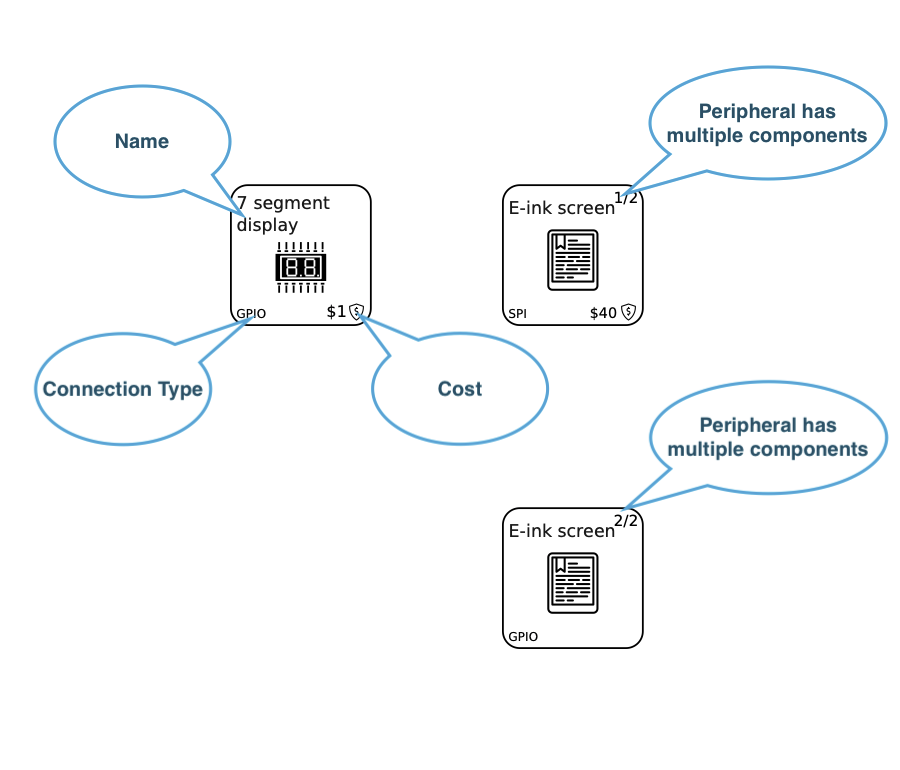

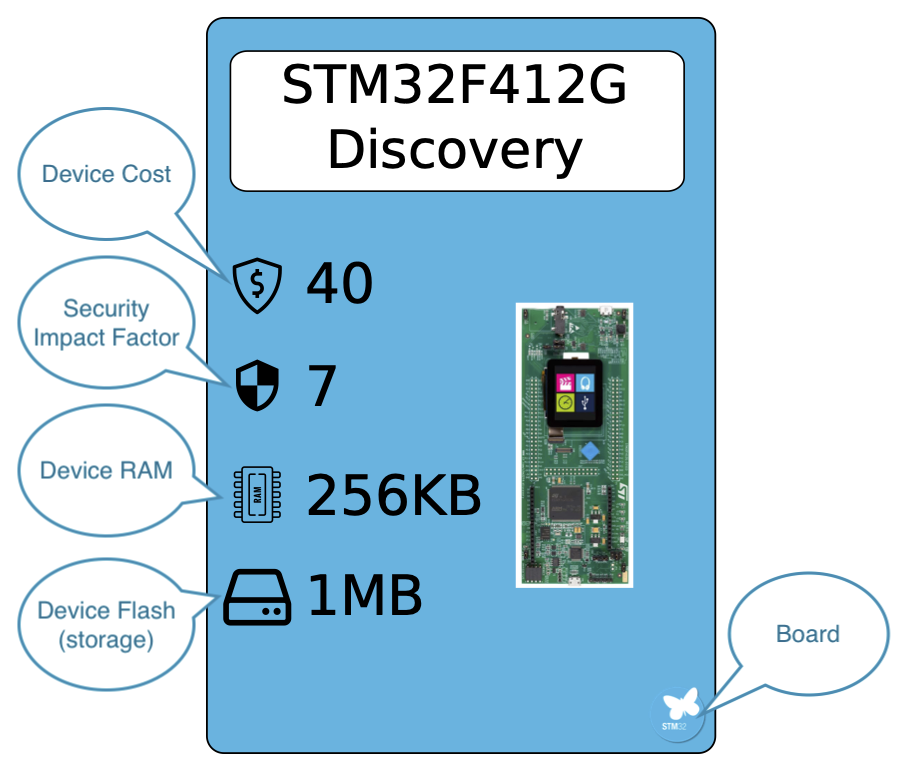

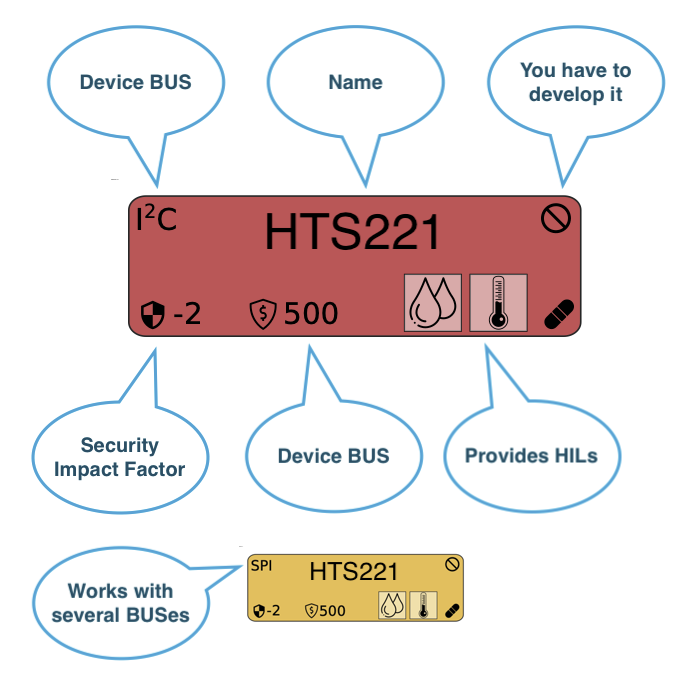

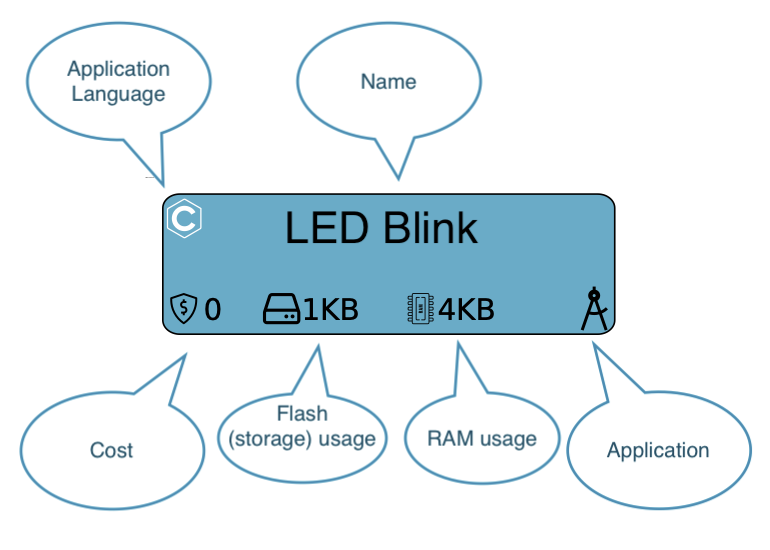

class: center, middle # Boardgame .title[.center[]] .left[ Alexandru Radovici ilustrations by [Mieuneli](http://miau.laura.ro), cards by Ioana Culic ] --- # Overview 1. Boardgame 2. Design a system 3. Tiles Toolkit --- # Boardgame The purpose of this game is: 1. a better understanding of the Tock stack 2. design a system 3. costs and security --- # Cards The boardgame has the following type of cards: - Hardware 1. Device 2. Bus 3. Peripheral - Software 1. Application 2. Capsule - API (HIL consumer) - HIL provider --- ## Hardware .title[.center[]] --- ### Device This card is the hardware platform that your project starts from .title[.center[]] --- ### Bus This card provides the description of one of the board's bus types .title[.center[]] --- ### Device This cards represents a sensors or an actuator .title[.center[]] --- ## Software .title[.center[]] --- ### Application This card represents an application that runs on top of Tock. .title[.center[]] --- ### Capsule (API) This card represents a capsule that: - provides an API to the user space. - consumes a HIL .title[.center[]] --- ### Capsule (HIL Provider) This card represents a capsule that provides an HIL to the another capsue. .title[.center[]]
