Course 7 - Delay & Grants

class: center, middle

# Delay & Grants

.title[.center[![SecureEmbeddedProgramming](../images/sep.png)]]

.left[
Alexandru Radovici ilustrations by [Mieuneli](http://miau.laura.ro)
]

---

# Overview

1. Delay in drivers
2. Grants

---

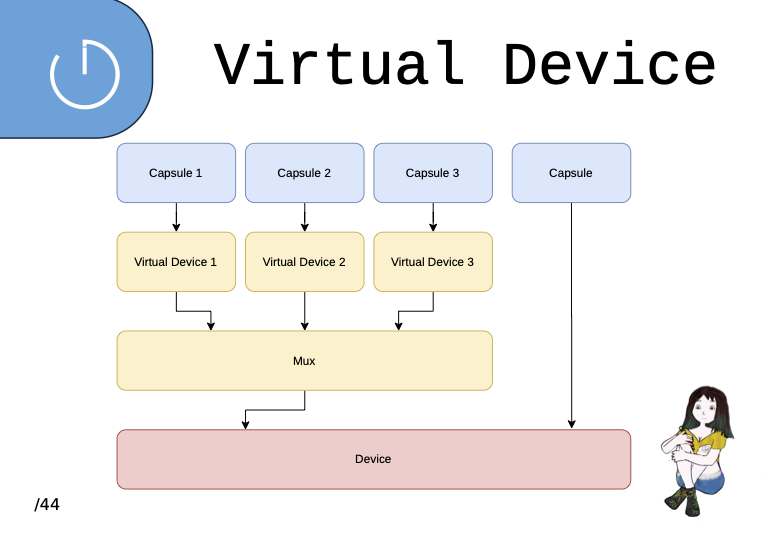

# Virtual Devices

.card[.large[.center[![Borrow Rules](../images/sep_virtual_device.png)]]]

---
class: split-70

# Delay in drivers

Write a driver that prints hello every second

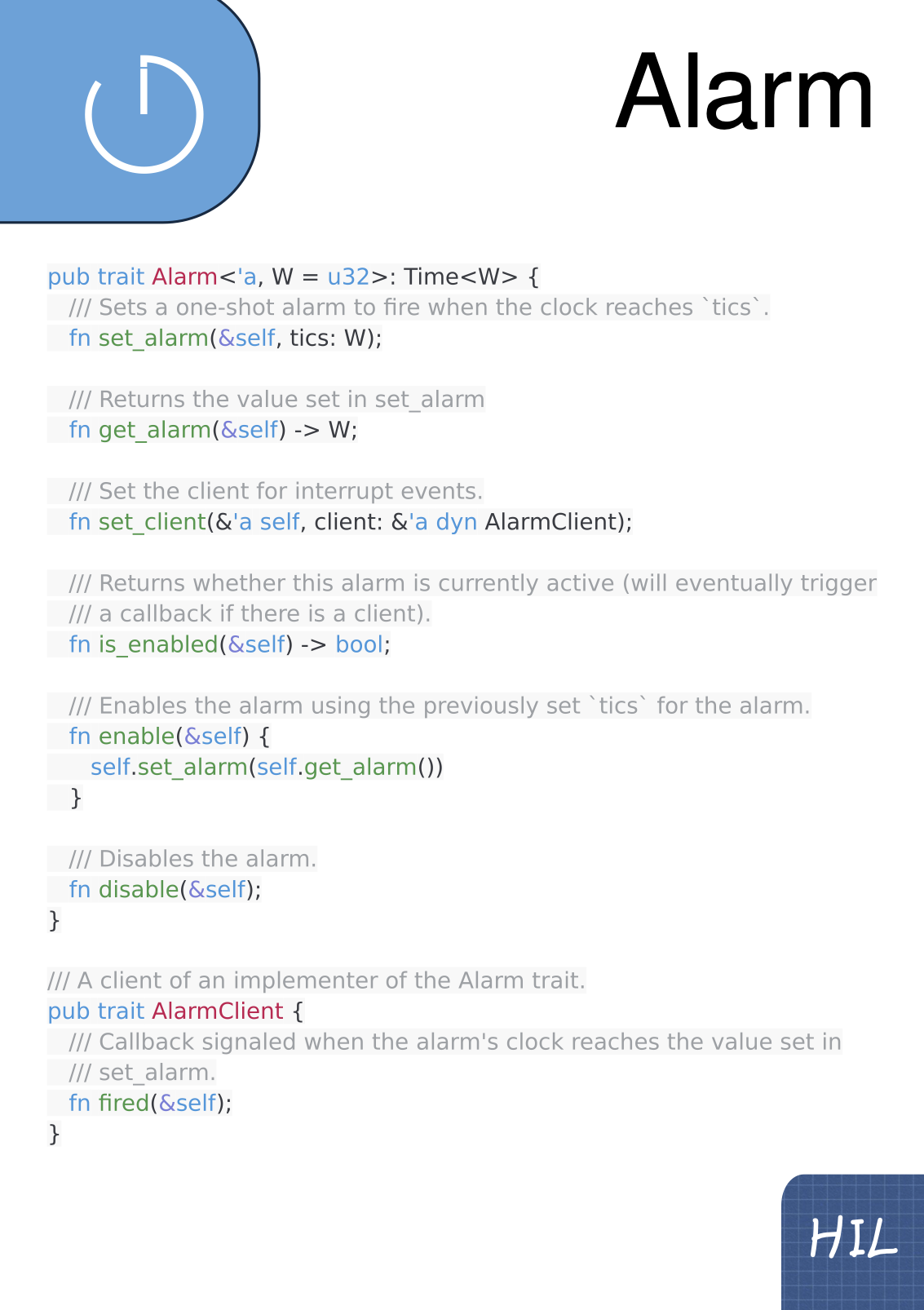

We have to use the `Alarm` HIL as a generic type for our driver.

.column[
```rust
use kernel::hil::time::{Alarm, AlarmClient, Frequency};
use kernel::debug;
use kernel::{AppId, Driver, ReturnCode, Grant};

pub struct Hello<A: 'static + Alarm<'static>> {
    alarm: &'static A,
}

impl<A: 'static + Alarm<'static>> Hello<A> {
    pub fn new(alarm: &'static A) -> Hello<A> {
        Hello { alarm: alarm }
    }
}
```

The `Alarm` trait cannot be used as `&'static dyn Alarm` due to its implementation (it has an assoctiated type `Alarm::Frequency`)

]

.column[
.right[.card[.small_vertical[![Alarm](../images/sep_alarm.png)]]]
]

---

## Alarm Implementation

Implement `Driver` and `AlarmClient`

```rust
impl<A: 'static + Alarm<'static>> Driver for Hello<A> {
    fn command(
        &self,
        command_num: usize,
        _data1: usize,
        _data2: usize,
        _app_id: AppId,
    ) -> ReturnCode {
        match command_num {
            0 => ReturnCode::SUCCESS,
            1 => {
                // set an alarm
                self.alarm.set_alarm(
                    self.alarm.now(),
                    <A::Frequency>::frequency() / 1000);
                ReturnCode::SUCCESS
            }
            _ => ReturnCode::ENOSUPPORT,
        }
    }
}

impl<A: 'static + Alarm<'static>> AlarmClient for Hello<A> {
    fn alarm(&self) {
        debug! ("hello");
        // next alarm
        self.alarm.set_alarm(
            self.alarm.now(),
            <A::Frequency>::frequency() / 1000);
    }
}
```

---
## Set the timeout

The `<A::Frequency>::frequency()` returns the MCU's alarm frequency, meaning how many tics
the timer will have per second.

`alarm.now ()` returns the current tics number

| Timeout | Frequency |
|---------|-----------|
| 100 ns¹  | `<A::Frequency>::frequency()` / 10000 |
| 1 ms    | `<A::Frequency>::frequency()` / 1000 |
| 10 ms   | `<A::Frequency>::frequency()` / 100 |
| 100 ms  | `<A::Frequency>::frequency()` / 10 |
| 1 s     | `<A::Frequency>::frequency()` |
| 10 s    | `<A::Frequency>::frequency()` * 10 |

¹ May not work

---
## Intialize the alarm using `VirtualAlarm`

In `main.rs` add the generic type to `Hello`

```rust
let hello_alarm = static_init!(
    VirtualMuxAlarm<'static, stm32f412g::tim2::Tim2>,
    VirtualMuxAlarm::new(mux_alarm)
);

let hello = static_init!(
    hello::Hello<VirtualMuxAlarm<'static, stm32f412g::tim2::Tim2<'static>>>,
    hello::Hello::new(hello_alarm)
);

hello_alarm.set_client (hello);
```

---

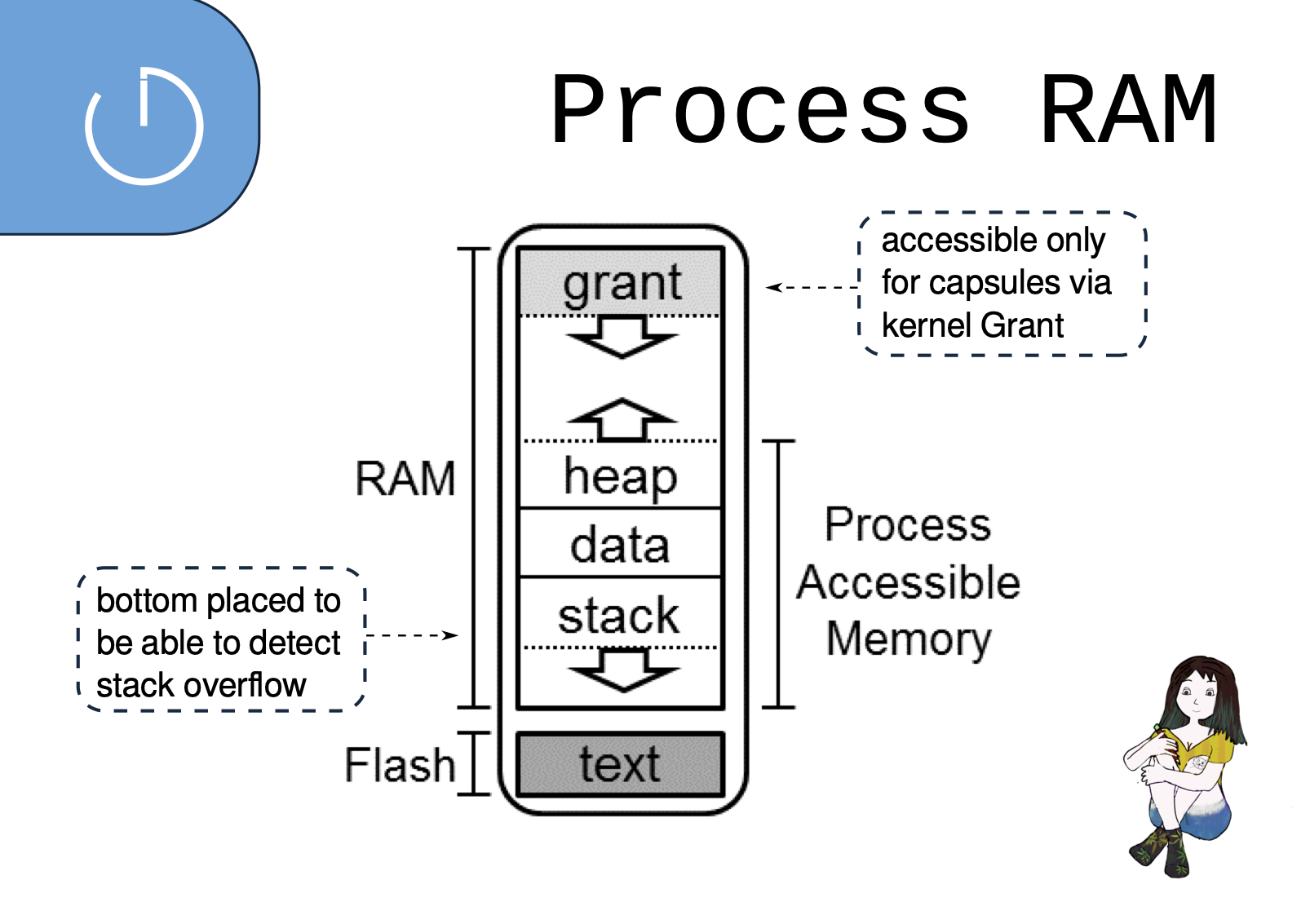

# Grants

- Drivers may not allocate memeory
- Drivers store data for every app
- Data is deallocated when the app stops

.card[.large[.center[![Borrow Rules](../images/sep_process_memory.png)]]]

Image from https://github.com/tock/tock/tree/master/doc

---

## Grants Usage

In `hello.rs`
```rust
#[derive(Default)]
pub struct AppData {
    // ...
}

pub struct Hello {
    // ...
    grant: Grant<AppData>
}
```

In `main.rs`
```rust
#[no_mangle]
pub unsafe fn reset_handler() {
    // ...
    let grant_cap = create_capability!(capabilities::MemoryAllocationCapability);
    let grant_hello = board_kernel.create_grant(&grant_cap);

let hello = static_init!(
        hello::Hello,
        hello::Hello::new(grant_hello)
    );
    // ...
}
```
---

## Using the Grant

```rust
impl Driver for Hello {
    fn command(
        &self,
        command_num: usize,
        _data1: usize,
        _data2: usize,
        app_id: AppId,
    ) -> ReturnCode {
        match command_num {
            0 => ReturnCode::SUCCESS,
            1 => {
                self.grant.enter (app_id, |app, _| {
                    // app is of type AppData
                    // use app. ...
                    ReturnCode::SUCCESS
                }).unwrap_or_else (|err| err.into())
            }
            _ => ReturnCode::ENOSUPPORT,
        }
    }
}
```

---

# Workpoint 2 .top_image[![Work In Progress](../images/work_in_progress.png)]

Modify the counter driver to use a different counter for each app. Load two apps that print the counter at different intervals.

```rust
impl Driver for Hello {
    /// subscribe and allow will use the default implementation
    /// command syscall
    fn command(&self, command_num: usize, _data1: usize, _data2: usize, _app_id: AppId) -> ReturnCode {
        match command_num {
            // command_num 0 is used to verify if the driver exists
            0 => ReturnCode::SUCCESS,
            1 => { debug! ("Print Hello"); ReturnCode::SUCCESS }
            2 => {
                // use a grant
                self.nr.set (self.nr.get () + 1);
                ReturnCode::SuccessWithValue { value: self.nr.get() }
            }
            // the command number is not defined
            _ => ReturnCode::ENOSUPPORT,
        }
    }
}
```

---

## Share Buffers

Apps may share data with drivers using the `allow` system call and `AppSlice<Shared>` and `Gants`.

```rust
struct AppData {
    buffer: Option<AppSlice<Shared>>
}

struct Print {
    grant: Grant<AppData>
    // ...
}

impl Driver for Print {
    fn allow(&self, appid: AppId, allow_num: usize, slice: Option<AppSlice<Shared, u8>>,) -> ReturnCode {
        match allow_num {
            0 => self
                .apps
                .enter(appid, |app, _| {
                    app.buffer = slice;
                    ReturnCode::SUCCESS
                }).unwrap_or_else(|err| err.into()),
            _ => ReturnCode::ENOSUPPORT
        }
    }
    // ...
}
```

---
# Workpoint 3 .top_image[![Work In Progress](../images/work_in_progress.png)]

Implement the full print driver in `print.rs`.

```rust
impl Driver for Print {
    fn allow(&self, appid: AppId, allow_num: usize, slice: Option<AppSlice<Shared, u8>>,) -> ReturnCode {
        match allow_num {
            0 => self
                .apps
                .enter(appid, |app, _| {
                    app.buffer = slice;
                    ReturnCode::SUCCESS
                }).unwrap_or_else(|err| err.into()),
            _ => ReturnCode::ENOSUPPORT
        }
    }
    fn command(&self, command_num: usize, data1: usize, data2: usize, appid: AppId) -> ReturnCode {
        match command_num {
            0 => ReturnCode::SUCCESS,
            // ...
            _ => ReturnCode::ENOSUPPORT
        }
    }
}
```

Hint: use `debug!` to print data.
