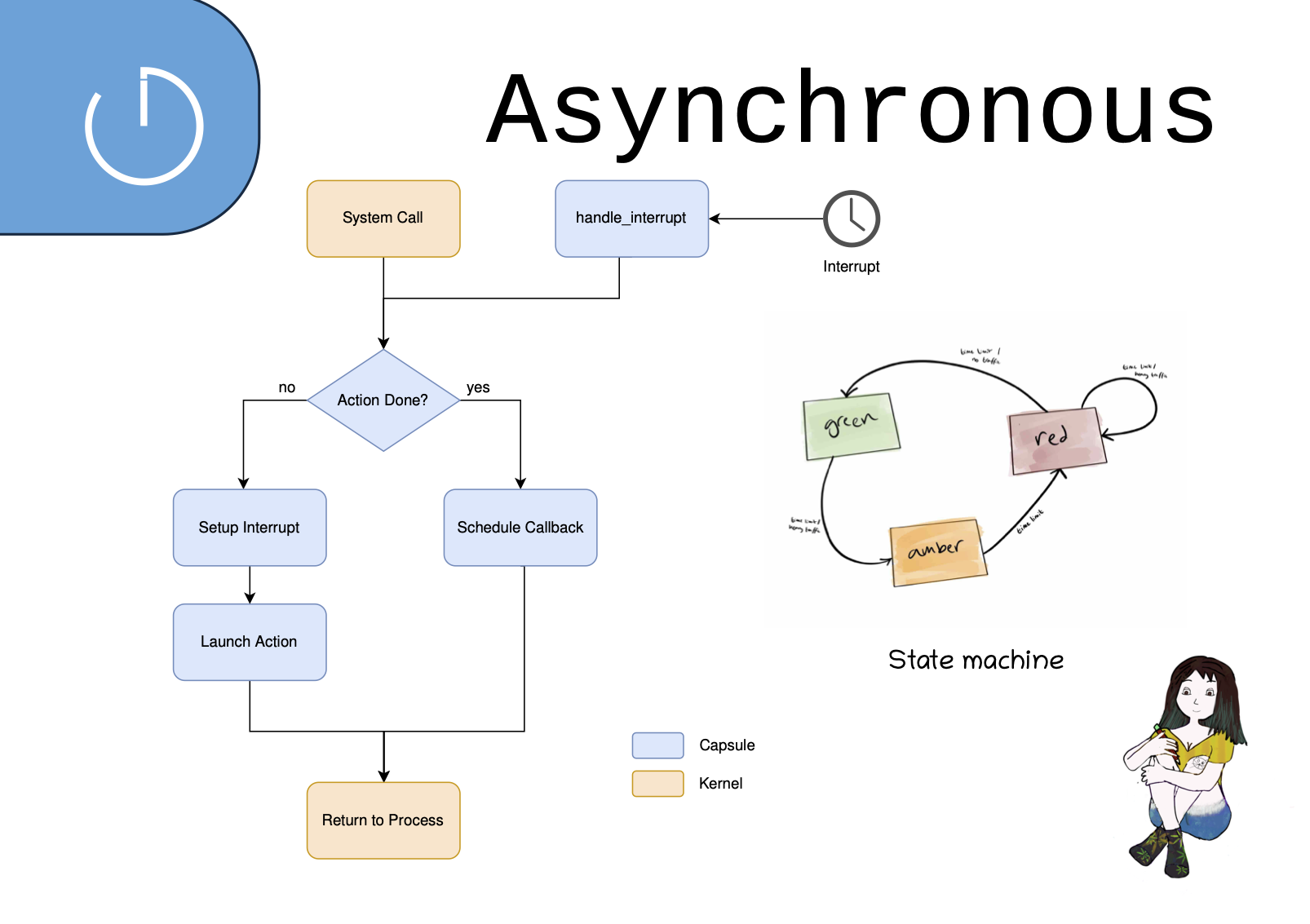

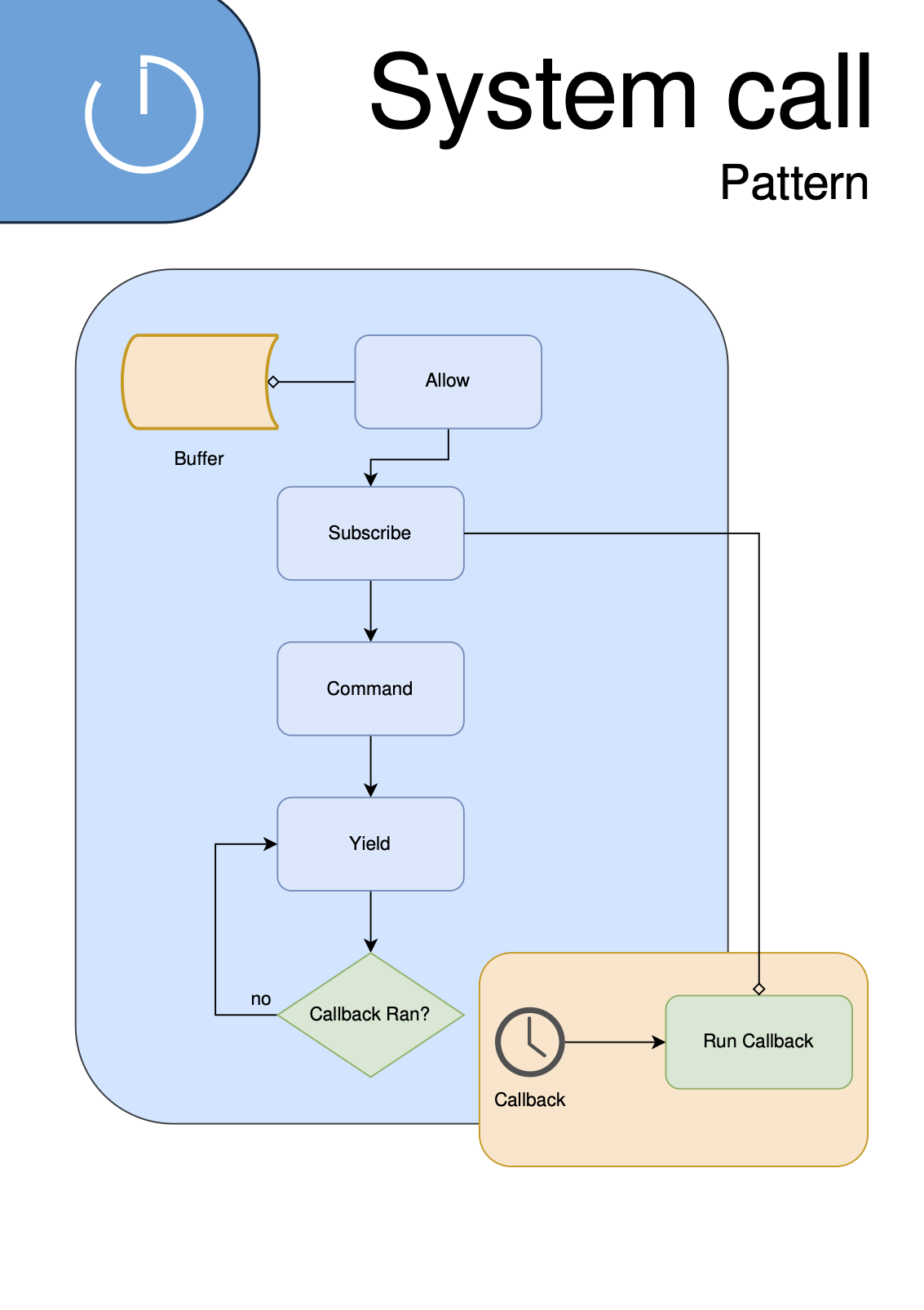

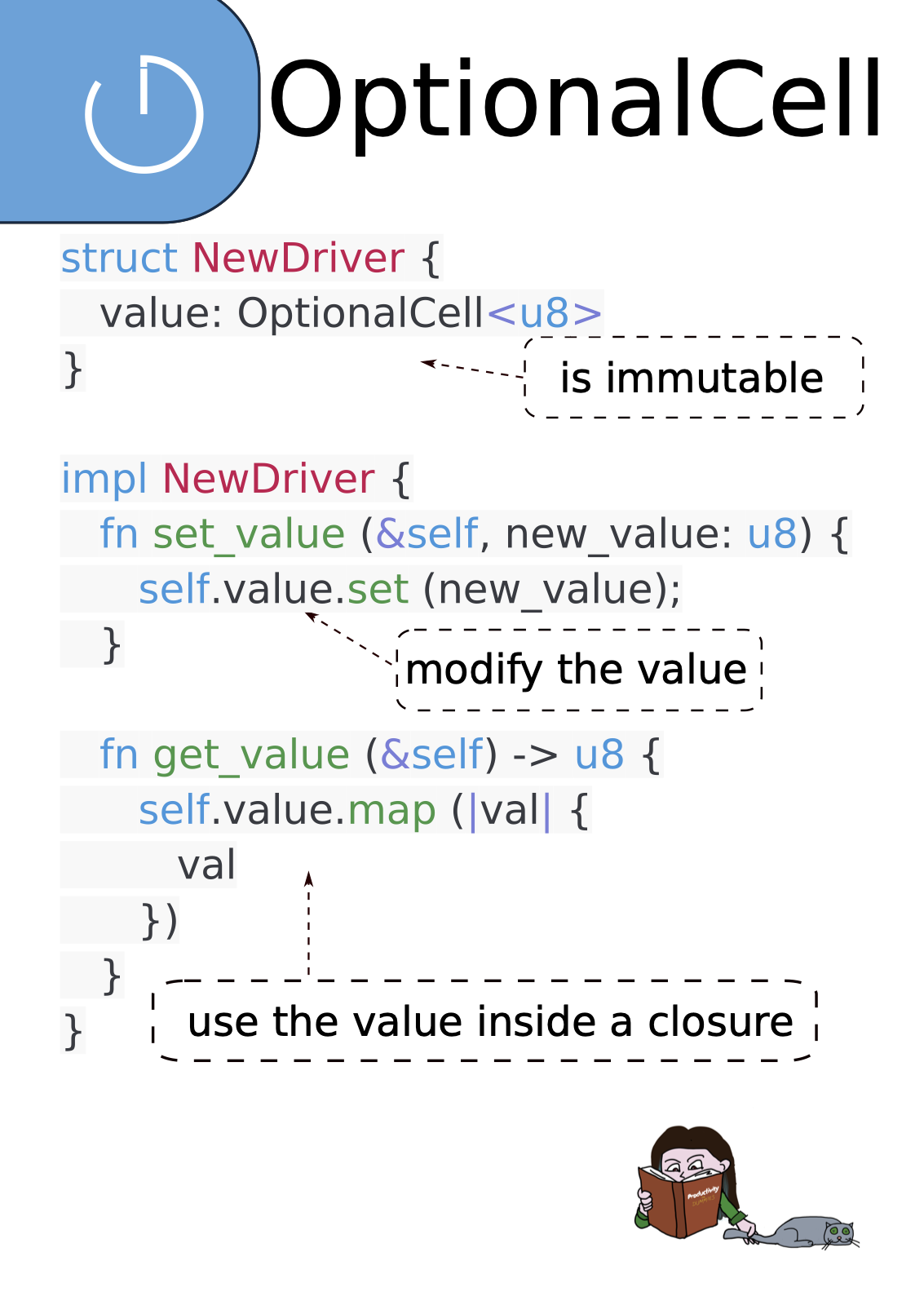

class: center, middle # Tock Capsules & Asynchronous .title[.center[]] .left[ Alexandru Radovici ilustrations by [Mieuneli](http://miau.laura.ro) ] --- # Overview 1. Tock Stack Review 2. Capsules Types 3. Asynchronous Actions --- # Tock Stack Review .splash[.center[]] Image from https://github.com/tock/tock/tree/master/doc --- # Tock Folders Review In `/home/tock` you have: ```bash +-- tock # original Tock repositories | +-- tock # kernel | +-- libtock-c # C userspace | +-- libtock-rs # Rust userspace | +-- /tock-saiot # our Tock version (with POSIX and Renode emulation) | +-- tock # kernel | +-- libtock-c # C userspace ``` --- ## Tock kernel source In `/home/tock-saiot/tock` you have: ```bash +-- tock # kernel | +-- arch # code specific to MCUs (ARM, RISC-V) | +-- boards # code specific to boards (STM32F412G Discovery Kit) | | +-- stm32f4discovery # the stm32f4 emulated board | | +-- ... # other boards | +-- capsules # drivers | +-- chips # code specific to MCUs (STM32F412G, E310, ) | +-- doc # documentation | +-- kernel # actual kernel (scheduler, ipc, memory) | +-- libraries # libraries used by all the source code | +-- tools # scripts for testing on other tools | +-- vagrant # VM setup (different from ours) ``` --- # Tock Capsules There are two types of capsules: 1. API - export syscalls to user space - implement `Driver` - Examples: `led`, `gpio`, ... TODO image 2. Service - used by other capsules - implement one or more of the HILs - usually talk to some hardware device - Examples: `l3gd20`, `lsm303dlhc`, ... TODO image --- ## Workpoint 1 .top_image[] Implement a temperature sensors capsule 1. Write a struct that implements the `Temperature` HIL - next to `main.rs` write a file `temperature_emualtion.rs` 2. Add the `temperature` driver to `main.rs` and link it to your driver - take a look at `main.rs` for `stm32f412gdiscovery` 3. Load the `sensors` application - in `libtock-c/examples/sensors` HINT: the sensor value returned will be a static value --- ## Workpoint 2 .top_image[] Modify the previous example to return a different value every time you query the temperature. HINT: there is no random number generator, but you can count how many times a query has been made --- # Asynchronous Development Similar to NodeJS event loop - usually one single thread - request something - do something else - get a notification - do something with the requested response --- ## Workpoint 3 .top_image[] Implement a loop in the `hello` driver. ```rust /// The driver system calls implementation impl Driver for Hello { /// subscribe and allow will use the default implementation /// command syscall fn command(&self, command_num: usize, _data1: usize, _data2: usize, _app_id: AppId) -> ReturnCode { match command_num { // command_num 0 is used to verify if the driver exists 0 => ReturnCode::SUCCESS, 1 => { debug! ("Print Hello"); ReturnCode::SUCCESS } 2 => { // modify number loop { self.nr.set (self.nr.get () + 1); } ReturnCode::SuccessWithValue { value: self.nr.get() } } // the command number is not defined _ => ReturnCode::ENOSUPPORT, } } } ``` What is the problem with this? --- ## Tock is asynchronous - Apps may be preempted - Drivers may not be interrupted - no use of delay in drivers .center[] --- ## Asynchronous Development Principles Like an event loop - schedule next action - wait for events - repeat .right[.card[.large[]]] --- ## How drivers work .large[.center[]] --- class: split-50 ## Asynchronous HIL .column[ Peripheral trait - exposes actions PeripheralClient client trait - receives notification ] .column[.center[.splash_vertical[]]] --- ### Actual HIL You request actions from the peripheral. ```rust trait Peripheral { fn request_action (&self, /* ... */) -> ReturnCode; // ... fn set_client (&self, client: &'static dyn PeripheralClient); } ``` ### HIL's Client(s) The peripheral will call this function when the action is done. ```rust trait PeripheralClient { fn action_done (&self, /* ... */); // ... } ``` --- ## Asynchronous HIl usage In a driver, when the user space requests a command: 1. the driver makes a request to the HIL 2. returns control to the kernel (so that processes can run) 3. the driver is eventually notified via the HIL's client 4. the driver notifies the app 5. the app has to yield to get the callback ```rust impl Driver for TheDriver { fn command(&self, command_num: usize, _data1: usize, _data2: usize, _app_id: AppId) -> ReturnCode { match command_num { 0 => ReturnCode::SUCCESS, 1 => self.peripheral.request_action (/* ... */) // this usually returns a ReturnCode _ => ReturnCode::ENOSUPPORT } } // ... } impl PeripheralClient for TheDriver { fn action_done (&self) { // ... notify the process } } ``` How do we notify the process? --- ## Optional Cell Similar to `Cell<Option<T>>`, but has some useful functions: .right[.card[.large_vertical[]]] --- ### Subscribe We use the subscribe mechanism: ```rust struct TheDriver { callback: OptionalCell<Callback> // ... } impl Driver for TheDriver { fn subscribe(&self, subscribe_num: usize, callback: Option<Callback>, appid: AppId) -> ReturnCode { match subscribe_num { 0 => self.callback.put (callback) } } // ... } impl PeripheralClient for TheDriver { fn action_done (&self, /* ... */) { let data1 = ..., data2 = ..., data3 = ... self.callback.map (|callback| callback.schedule (data1, data2, data3)); } } ``` --- ### Subscribe in user space app In the app, you have to subscribe first: ```c static event_from_driver (int data1, int data2, int data3, void *user_data) { // ... } int main () { void *user_data = ... // may be NULL subscribe (THE_DRIVER_NUMBER, 0, event_from_driver, user_data); command (THE_DRIVER_NUMBER, 1, 0, 0); yield (); } ``` --- class: split-50 ### System Call Pattern .column[ 1. Allow a buffer 2. Subscribe 3. Send a Command 4. Yield 5. Verify if your callback was called - yes, continue - no, yield again ] .column[ .right[.card[.large_vertical[]]] ] --- # Workpoint 4 .top_image[] Make the `Hello` driver asynchronous, it returns the counter via a subscribe. ```rust /// The driver system calls implementation impl Driver for Hello { /// allow will use the default implementation fn subscribe(&self, subscribe_num: usize, callback: Option<Callback>, appid: AppId) -> ReturnCode { match command_num { 0 => // set the callback _ => ReturnCode::ENOSUPPORT, } } /// command syscall fn command(&self, command_num: usize, _data1: usize, _data2: usize, _app_id: AppId) -> ReturnCode { match command_num { // command_num 0 is used to verify if the driver exists 0 => ReturnCode::SUCCESS, 1 => { debug! ("Print Hello"); ReturnCode::SUCCESS } 2 => { // modify number self.nr.set (self.nr.get () + 1); // schedule the callback ReturnCode::SUCCESS } // the command number is not defined _ => ReturnCode::ENOSUPPORT, } } } ```
