# Renode & Tock Drivers API

.title[.center[![SecureEmbeddedProgramming](../images/sep.png)]]

.left[
Alexandru Radovici, Cosmin Daniel Radu, ilustrations by [Mieuneli](http://miau.laura.ro)
]

---

# Overview

1. Tock Applications
2. Simple Driver
3. System calls

---
# Tock Applications

TODO

---
# Hello Driver

Kernel

1. Write the `Hello` and its implementation
2. Implement the `Driver` trait for `Hello`
  - all methiods have default implementation
3. Add the driver to the board structure in `main.rs`

User space

- Implement the system calls

---
## Kernel (hello.rs)

Write the driver and implement the `Driver` trait (1 and 2).

Write a file `hello.rs` in the same folder as `main.rs`.

```rust
use kernel::{Driver, AppId, ReturnCode};

/// Each driver is identified by a unique number
///
/// numbers higher than 0xa0000000 are unused by standard drivers
pub const DRIVER_NUM: usize = 0xa0000000;

/// The Hello structure
pub struct Hello {}

/// The hello implementation
impl Hello {
    pub fn new() -> Hello {
        Hello {}
    }
}

/// The driver system calls implementation
impl Driver for Hello {
    /// subscribe and allow will use the default implementation

/// command syscall
    fn command(&self, command_num: usize, _data1: usize, _data2: usize, _app_id: AppId) -> ReturnCode {
        match command_num {
            // command_num 0 is used to verify if the driver exists
            0 => ReturnCode::SUCCESS,

// the command number is not defined
            _ => ReturnCode::ENOSUPPORT,
        }
    }
}
```

---
## Kernel (main.rs)

In `main.rs`

```rust
/// use the driver module
mod hello;

// ...

/// A structure representing this platform that holds references to all
/// capsules for this platform.
struct STM32F4Discovery {
    console: &'static capsules::console::Console<'static>,
    ipc: kernel::ipc::IPC,
    led: &'static capsules::led::LED<'static, stm32f407zg::gpio::Pin<'static>>,
    button: &'static capsules::button::Button<'static, stm32f407zg::gpio::Pin<'static>>,
    alarm: &'static capsules::alarm::AlarmDriver<
        'static,
        VirtualMuxAlarm<'static, stm32f407zg::tim2::Tim2<'static>>,
    >,
    gpio: &'static capsules::gpio::GPIO<'static, stm32f407zg::gpio::Pin<'static>>,
    // hello driver
    hello: &'static hello::Hello
}
// ...

/// Mapping of integer syscalls to objects that implement syscalls.
impl Platform for STM32F4Discovery {
    fn with_driver<F, R>(&self, driver_num: usize, f: F) -> R
    where
        F: FnOnce(Option<&dyn kernel::Driver>) -> R,
    {
        match driver_num {
            capsules::console::DRIVER_NUM => f(Some(self.console)),
            capsules::led::DRIVER_NUM => f(Some(self.led)),
            capsules::button::DRIVER_NUM => f(Some(self.button)),
            capsules::alarm::DRIVER_NUM => f(Some(self.alarm)),
            kernel::ipc::DRIVER_NUM => f(Some(&self.ipc)),
            capsules::gpio::DRIVER_NUM => f(Some(self.gpio)),
            // hello driver
            hello::DRIVER_NUM => f(Some(self.hello)),
            _ => f(None),
        }
    }
}
// ...

/// Reset Handler.
///
/// This symbol is loaded into vector table by the STM32F446RE chip crate.
/// When the chip first powers on or later does a hard reset, after the core
/// initializes all the hardware, the address of this function is loaded and
/// execution begins here.
#[no_mangle]
pub unsafe fn reset_handler() {
    // ...

/// Create a new instance of type Hello using Hello::new ()
    let hello = static_init! (hello::Hello, hello::Hello::new());

/// Create a new instance of the board's structure
    let stm32f407zg = STM32F4Discovery {
        console: console,
        ipc: kernel::ipc::IPC::new(board_kernel, &memory_allocation_capability),
        led: led,
        button: button,
        alarm: alarm,
        gpio: gpio,
        // the hello driver
        hello: hello,
    };
    // ...
}
```

---
## User space

In your application's folder (`libtock-c/examples/...` - clone of of the examples)

hello.h
```c
#pargma once

#define HELLO_DRIVER_NUMBER 0xa0000000

bool hello_is_available (void);

```

hello.c
```c
#include "hello.h"
#include <tock.h>

bool hello_is_available (void) {
    if (command (HELLO_DRIVER_NUMBER, 0, 0, 0) == TOCK_SUCCESS) {
        return true;
    } else {
        return false;
    }
}
```

---
## Workpoint 2 .top_image[![Work In Progress](../images/work_in_progress.png)]

Add `command_num` 1 to the driver and print a text on the shell when it is called.

```rust
/// The driver system calls implementation
impl Driver for Hello {
    /// subscribe and allow will use the default implementation

// the command number is not defined
            _ => ReturnCode::ENOSUPPORT,
        }
    }
}
```

Add a function for it in the header and source file in userspace.
Write and upload an app that userspac the driver.

---
# Mutability

All Tock traits use `&self` to be able to share a driver with several other drivers.

Interior mutability:

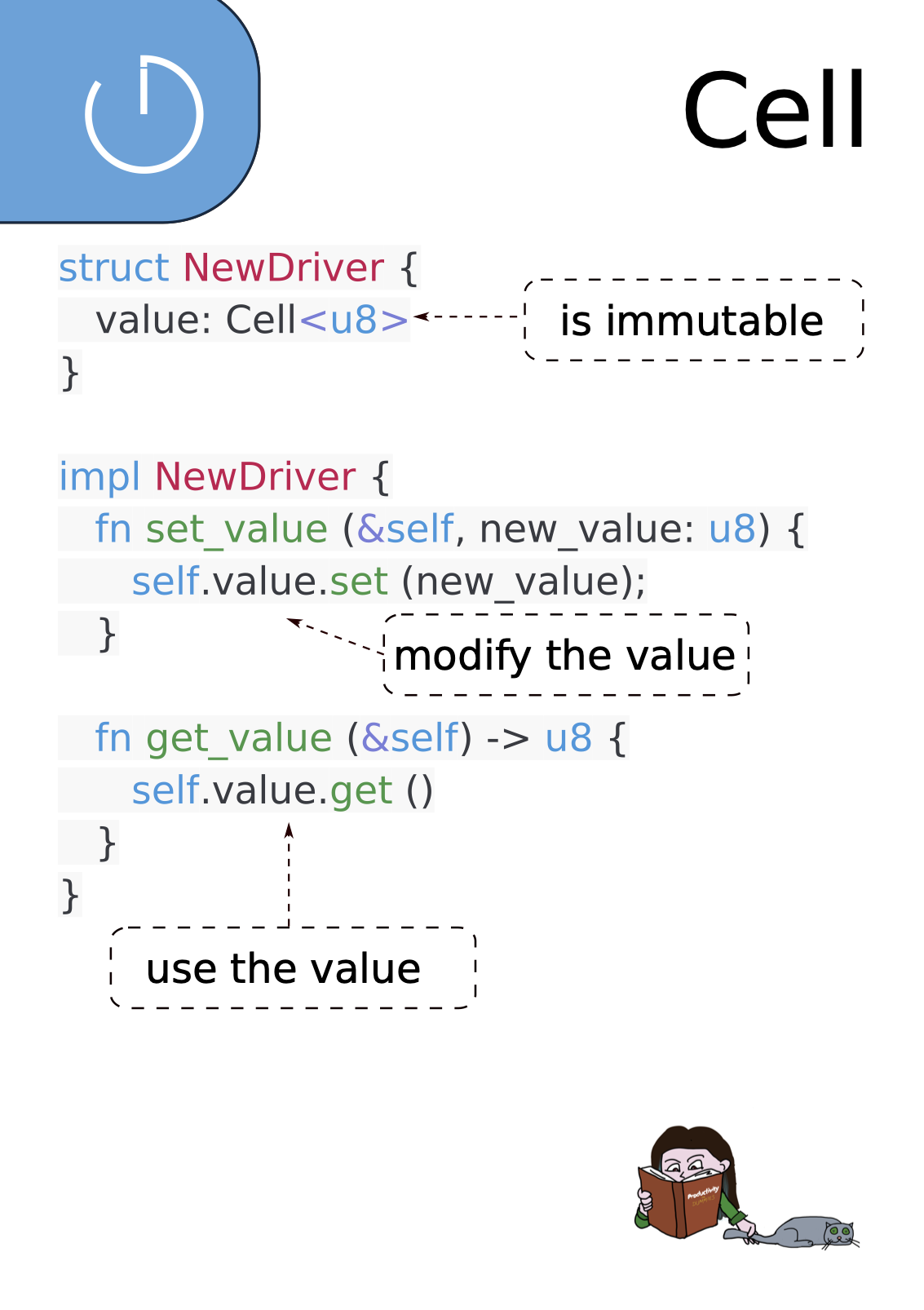

- Cell<T> (`core::cell::Cell`)
- OptionalCell<T> (`kernel::common:cells::OptionalCell`)

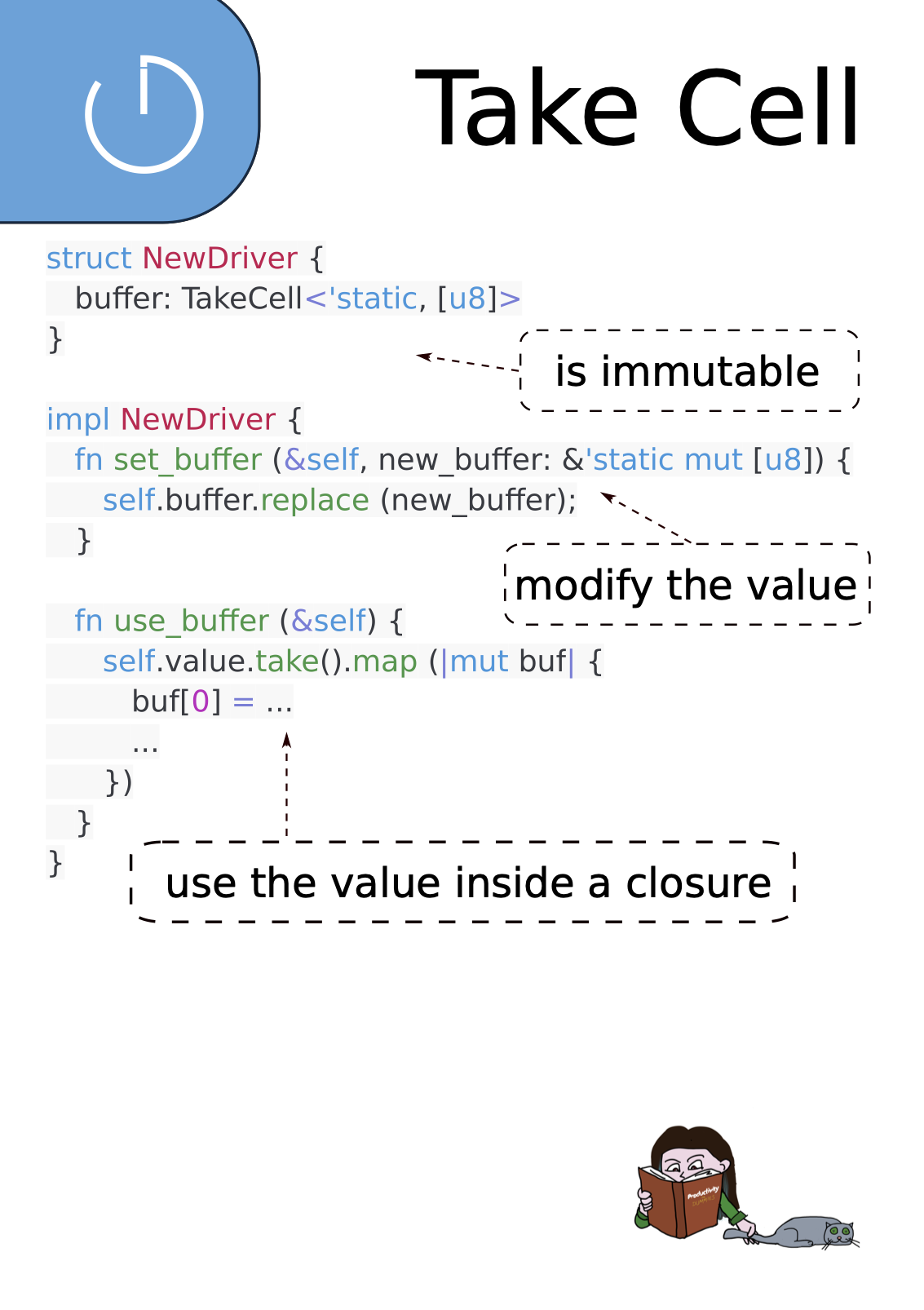

- TakeCell<T> (`kernel::common::cells::TakeCell`)

.right[
.card[.small_vertical[![Cell](../images/sep_cell.png)]]
.card[.small_vertical[![OptionalCell](../images/sep_optionalcell.png)]]
.card[.small_vertical[![TakeCell](../images/sep_takecell.png)]]
]

---

## Cell

Store a mutable value inside a immutable structure

```rust
use kernel::{Driver, AppId, ReturnCode};
use core::cell::Cell;

/// Each driver is identified by a unique number
///
/// numbers higher than 0xa0000000 are unused by standard drivers
pub const DRIVER_NUM: usize = 0xa0000000;

/// The Hello structure
pub struct Hello {
    nr: Cell<usize>
}

/// The hello implementation
impl Hello {
    pub fn new() -> Hello {
        Hello {
            nr: Cell::new (0)
        }
    }
}

/// The driver system calls implementation
impl Driver for Hello {
    /// subscribe and allow will use the default implementation

2 => {
                // modify number
                self.nr.set (self.nr.get () + 1);
                ReturnCode::SuccessWithValue { value: self.nr.get() }
            }

// the command number is not defined
            _ => ReturnCode::ENOSUPPORT,
        }
    }
}
```

---
## Workpoint 3 .top_image[![Work In Progress](../images/work_in_progress.png)]

Add `command_num` 2 that will increment a counter and return it to the app.
  Hint: use `ReturnCode::SuccessWithValue { value: ... }`

Each time the app calls the system call, the driver will will return an incremented number.

```c
#include "hello.c"
#include <stdio.h>
#include <timer.h>

int nr;

int main(void) {
    while (true) {
        nr = hello_counter ();
        printf ("Counter %d\n", n);
        delay_ms (1000);
    }
}
```

Hint: store the current number in the `Hello` structure.
